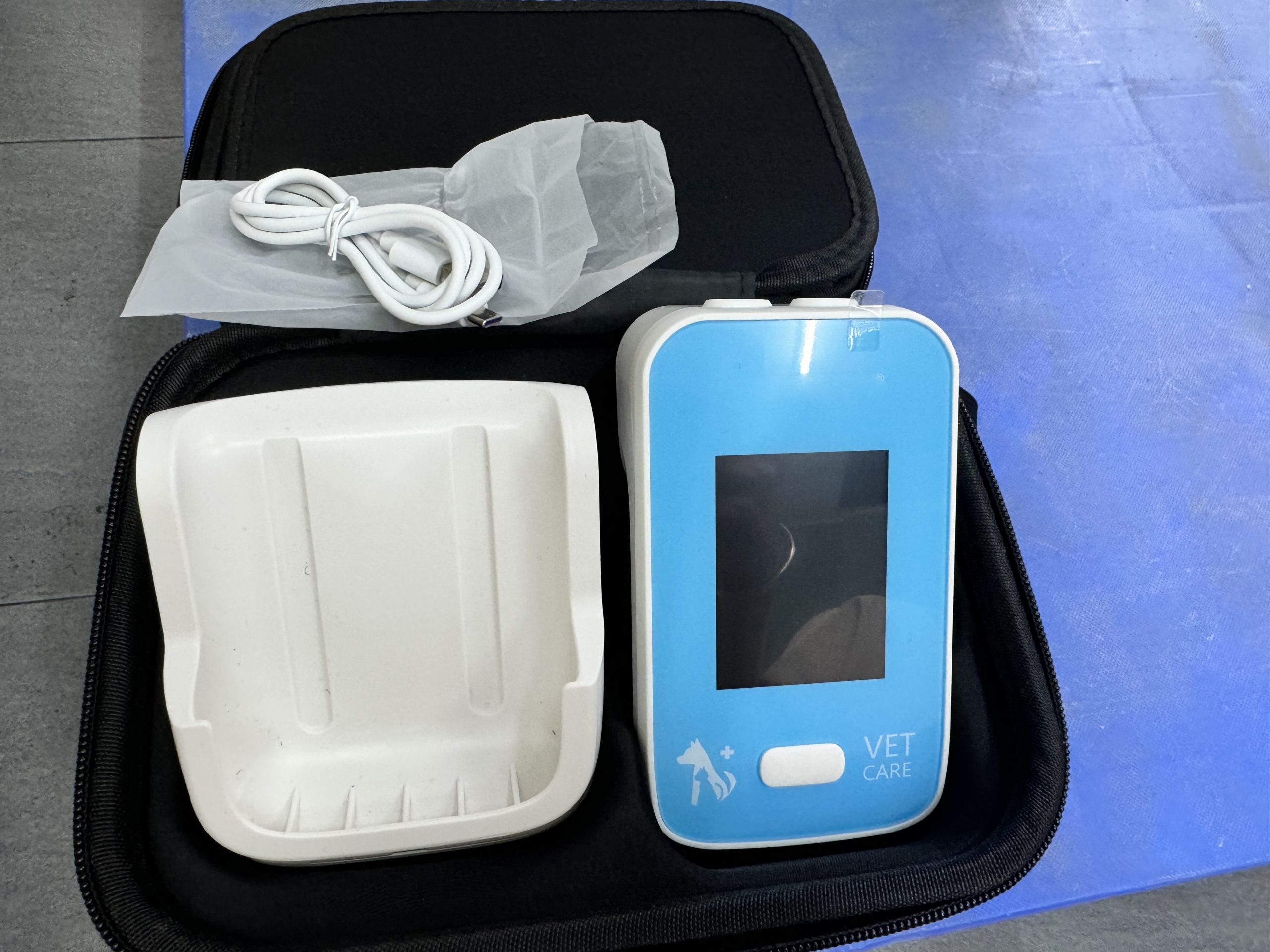

CFV-PM620V Vet Portable Patient Monitor
CFV-PM620V Vet Portable Patient Monitor
- Communication with other intelligent terminals via Bluetooth.
- Automatically power off to save power.
- Portable, palm size
- Low power consumption.
- One touch operation
- APP for Android and iOS
- Real time data transmission

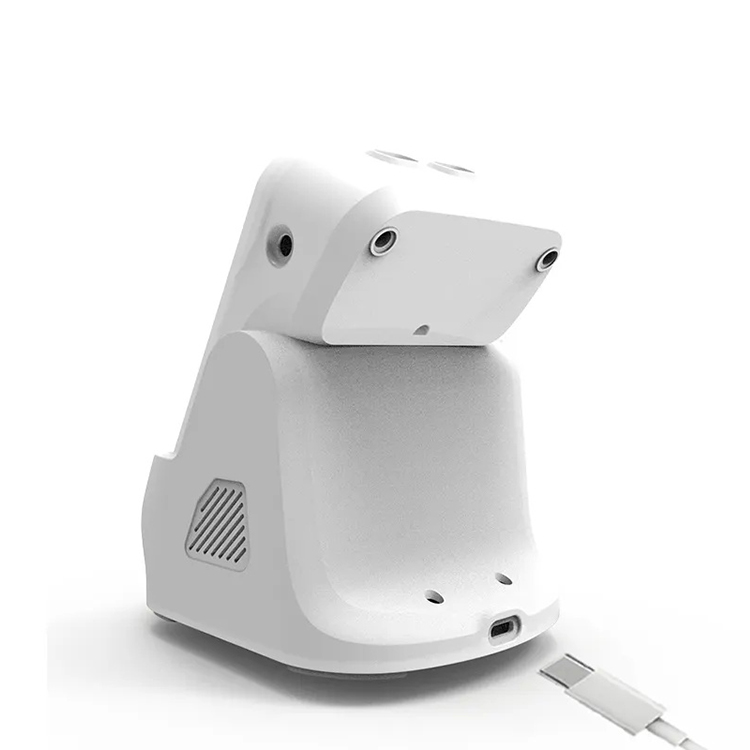

- Rechargeable battery and wireless charging
- Can be used while charging
- Lithium battery is builtin.
Function and Features

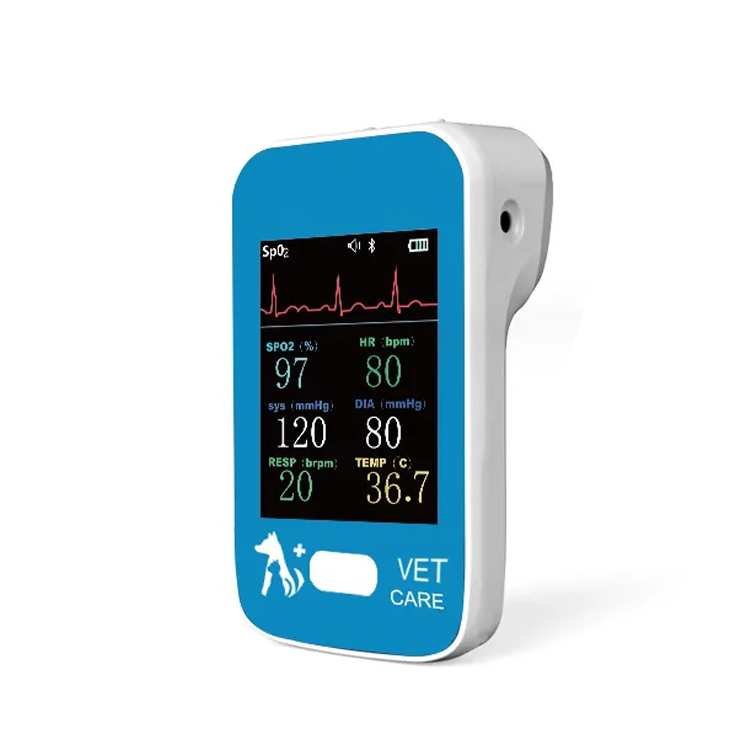

1、6-Vital signs numerical results and waveform are shown on the TFT-LCD in real time.
- Communication with other intelligent terminals via Bluetooth.
- Automatically power off to save power.
- Portable, palm size
- Low power consumption.
- One touch operation
- APP for Android and iOS
- Real time data transmission
- Rechargeable battery and wireless charging
- Can be used while charging
- Lithium battery is builtin.
12、Multi-function for SpO2, HR, Temp, ECG, RR and NIBP
Technical Features
| Display ECG, HR, NIBP, SpO2, PR, TEMP | Screen: 2.8 inches colorized TFT-LCD screen |
| ECG
Waveform: Lead I Band width 0.05Hz ~ 100Hz(3dB) diagnose mode 1 ~ 40Hz monitor mode 0.1 ~ 25Hz operation mode |
Heart rate: Scope: 15 bpm ~ 300 bpm Accuracy:±2bpm or 2%, whichever is greater. |
| NIBP
Scope: Systolic blood pressure: 4kPa ~ 34kPa(30mmHg ~ 255mmHg) Diastolic pressure: 2kPa ~ 29.3kPa(15mmHg ~ 220mmHg) Mean pressure: 2.7kPa ~ 31.3kPa （20mmHg ~ 235mmHg） Detection accuracy: Static pressure: ±3mmHg |
Temp:
Type: Vascular/surface temperature |
| RESP Measurement range: 5～100brpm. Accuracy:±2brpm |
TEMP Measurement range: 25～45℃. |
| SpO2 Measurement range:35~100%. Accuracy: ±2% (80%~100%), ±3% (70%~79%), |
PR Measurement range: 25~250bpm. Accuracy: ±2bpm or 2%, whichever is greater. |
| NIBP:
Scope: Systolic blood pressure: 4kPa ~ 34kPa (30mmHg ~ 255mmHg) Diastolic pressure: 2kPa ~ 29.3kPa (15mmHg ~ 220mmHg) 2.7kPa ~ 31.3kPa （20mmHg ~ 235mmHg） Static pressure: ±3mmHg |
Weight: 256±10g (n |
