Standard:

ECG, NIBP, SpO2, PR, TEMP, RESP

Optional:

Mainstream/Sidestream EtCO2, GAS, IBP-1/IBP-2, Thermal Recorder, Wall Mount, Trolly, CMS



Features

• 12.1 inch, 800×600 color TFT, multi‐channel display, wave channel: 13 waves maximum
• SpO2have DSP algorithm and excellent performance when movement, SpO2 has PI and exellent performance in low perfusion
• NIBPVET algorithm support animals from small cat to horse, NIBP over pressure protection
• Unique human voicealarm

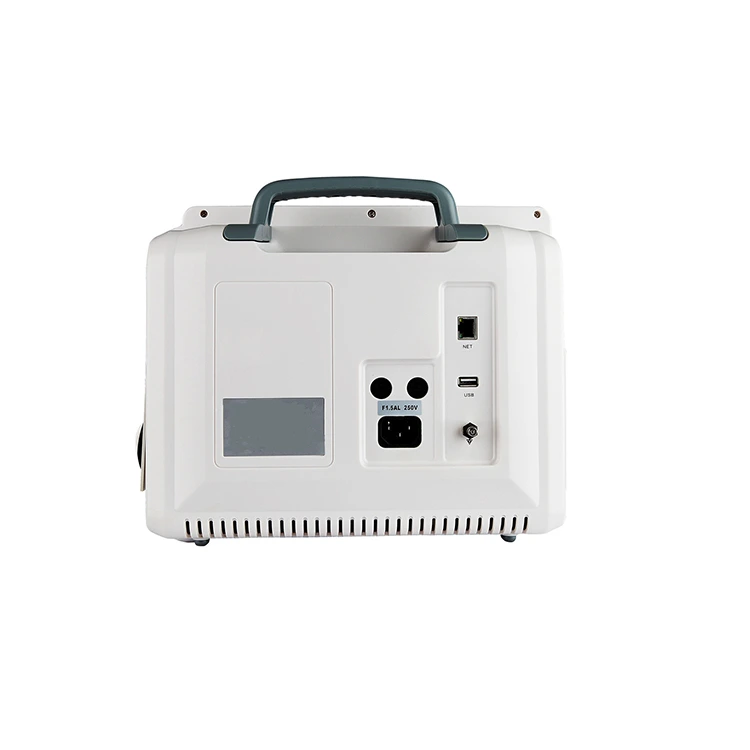

• StandardRJ45 network, optional USB WIFI module can easy connect to CMS
• USBdata output with software to view data on computer
• Gasmodule can auto detect 5 anethesia gas type: HAL, ENF, ISO, SEV, DEV
• kindsscreen layout include Big font screen, parameter and wave can turned on and off for each



ECG

Lead：3/5

5 lead mode：Ⅰ、Ⅱ、Ⅲ、aVR、aVL、aVF、V

3 ECG channels, 7 ECG waves in ECG full lead mode HR：15～500BPM

Gain：X1/4, X1/2, X1, X2

Wave speed：12.5 /25 /50 mm/s Pacemaker

Arrythmia analysis ST analysis

Filter mode: other, monitor, surgery

RESP

Impedance between RA-LL or RA-LA RESP lead：Ⅰ/Ⅱ

Wave speed：6.25、12.5、25mm/s Apnea Alarm, 5～120s

NIBP

Method：Oscillometry

For animal from <10kg to > 20kg Unit：mmHg ,Kpa

Mode: Manual, Auto, STAT Measure and Alarm Range SYS 40 ~ 280 mmHg

DIA 10 ~ 220 mmHg

MEAN      20 ~ 240 mmHg

Cuff 0 ~ 300mmHg Static pressure: ±3mmHg

Automatic measurement interval time: 1 minute ~ 480 minutes

SPO2

SpO2, PR, PI

Accuracy: ±2%（70～100%）

Pulse Rate: 20~250bpm

Temperature

Channel：2

Measure and Alarm Range0 ~ 50℃ Sensor type：rectal

Unit：℃ Accuracy：±0.1℃

Recorder

3 channals

Storage

≥720 hours trend graph and trend table 2 houss wave review

200 alarm review

Alarm

3 levels alarm

All the alarm limit can be adjusted by user. Unique Voice alarm

IBP

Sensor: OHMEDA or BD、EDWARD compatible Channels: 2

Measuer Range: -50~ 360（mmHg） Accuracy(no sensor): ±2% or ±1mmHg, use the greater

CO2

Measuer Range: 0% ~ 13%

Accuracy: ±2 mmHg @ < 5.0% CO₂ (at ATPS) Breath Rate: 3 – 150 bpm
