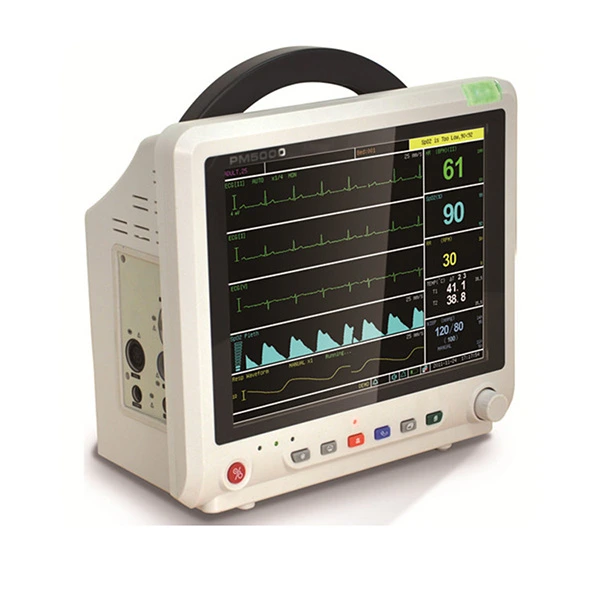

CFV-PM500V Veterinary Patient Monitor

The veterinary patient monitor is intended to be used in vet clinics and hospitals or clinic where veterinary patient monitoring systems are needed.

►Features

• 12.1″ large-sized screen,anti-dazzle with 4°incline
• Wide-angle alarms indicator makes patients safer
• 3-level visual/audio alarms and alarm events can be stored and reviewed
• Multiple display modes :OxyCRG ,Trend table and Trend graph etc
• Connect with central monitoring system for remote and wireless monitor
• Advanced patient information management system
• Large measurement ranges of SpO2, pulse rate and NIBP technical specialized in veterinary
• Support slot interfaces:USB,VGA,Network,Wi-fi

 ♦ Large screen with maximum 8 waveform

♦ No fan design to keep the whole system working quietly

♦Dual battery channels to realize long time continuous operation

♦Ergonomically designed handle to fit your hand comfortably

♦The recorder supports the print of 3-Channel waveform at the same time

♦Multiple installation solutions with trolley and wall brace etc

►Standard Configuration

ECG /RESP /SpO2 /NIBP /TEMP /Lithium Battery

►Optional Configuration

ETCO2 /IBP /Built-in Recorder /Trolley /Brace /IPMS8000 Intelligent Patient Management System

► Specification

Dimensions

Width:  324mm (12.76 inches)

Height:  324mm (12.76 inches)

Length:  183mm (7.20 inches)

Weight:  3.75kg (8.27lbs)
