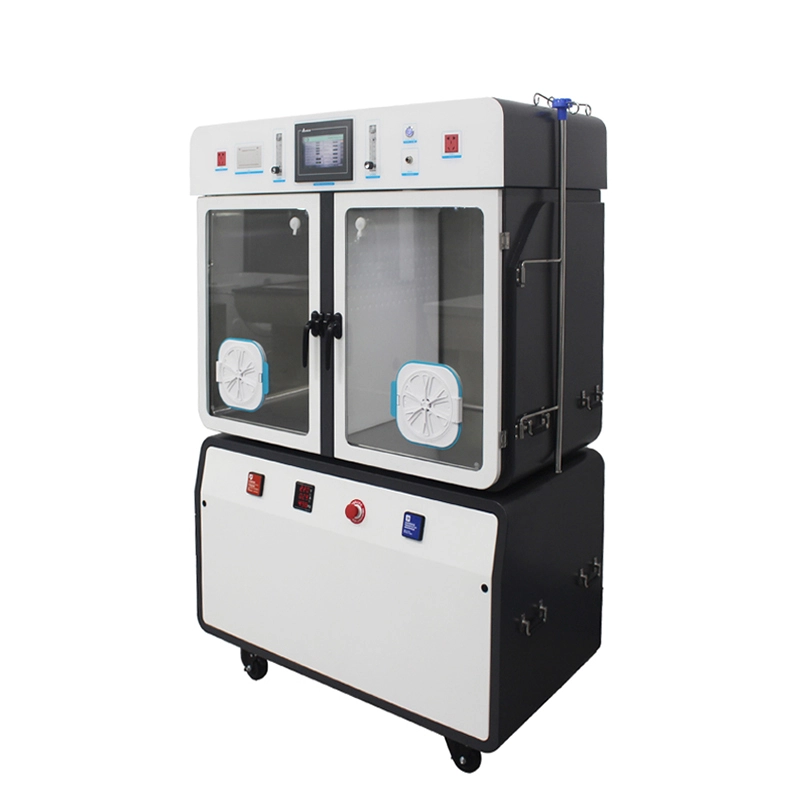

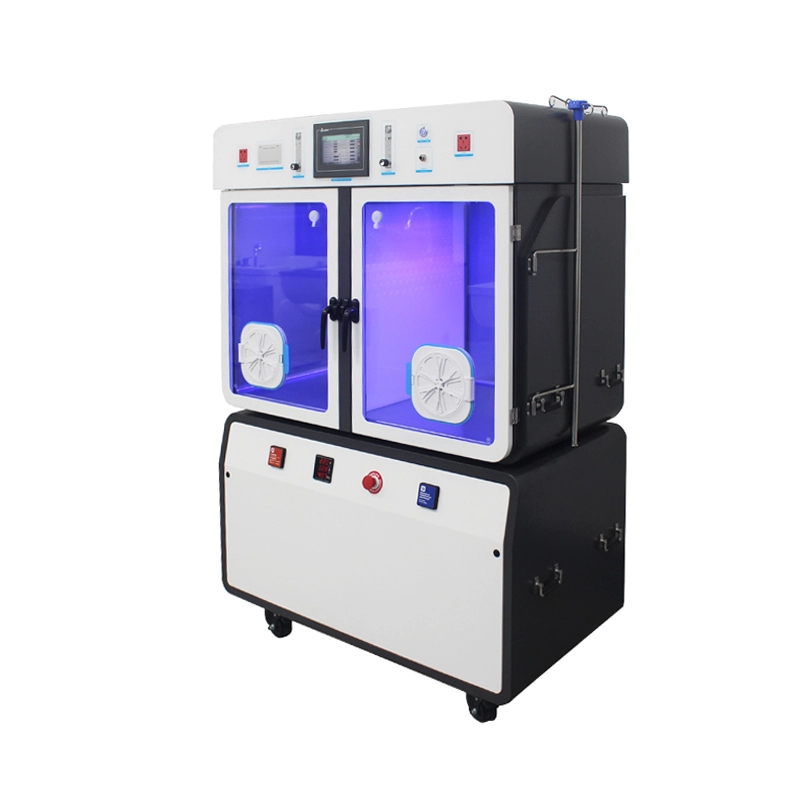

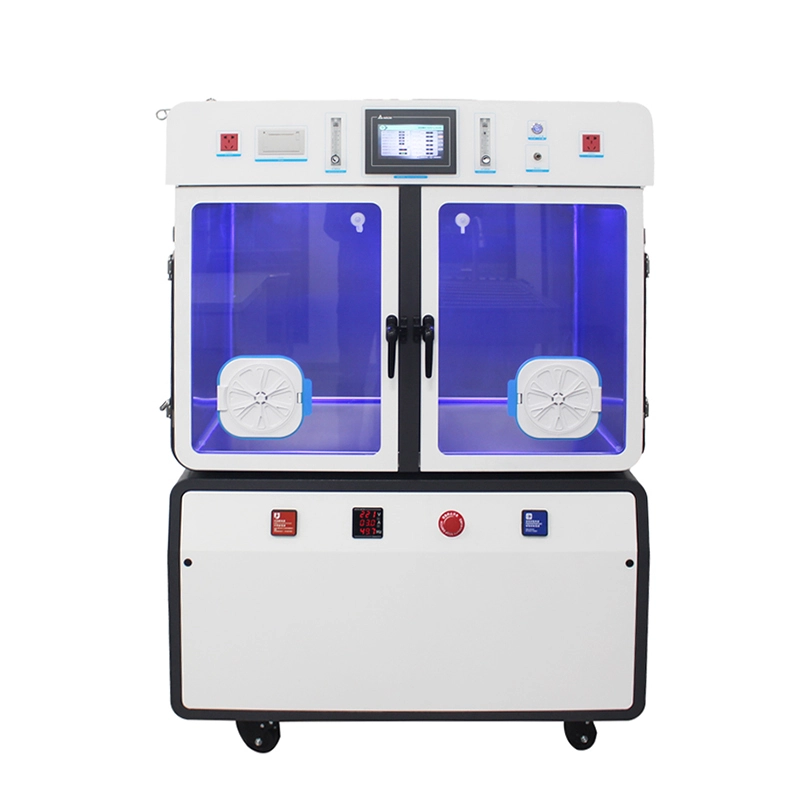

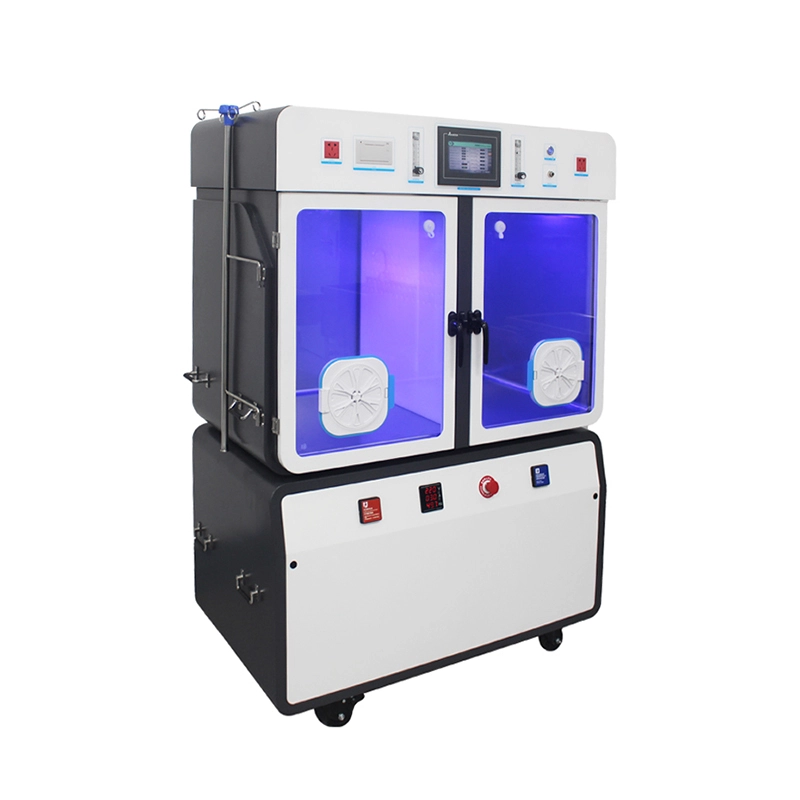

CFV-ICU01 Pet ICU Cage

Features

3D balanced circulation temperature control system wrapped around the inner wall.

Balanced temperature rise and fall along the inner wall, the temperature in the chamber is balanced everywhere, creating a 3D artificial climate

environment. Precise temperature control 15-38 ℃, temperature control error

0.5 ℃,medical expert-level temperature control accuracy. Precise

independent air conditioning system, blowing a pleasant natural wind, and achieve high silent performance. According to the seasonal changes, and combined with the external environment to calculate the most suitable operating conditions, energy saving and environmental protection.



High-performance oxygen chamber technology

Adopt central oxygen supply system, independent cabin supply automatic control. The use of high-precision oxidation drill sensor, coated with white gold (Pt) on the surface, has a very high sensitivity to oxygen and has a long service life, high precision control characteristics, the actual oxygen control21～55% control accuracy <1%.



High concentration of medical grade negative ion air purification function

(1) The role of air purification

Negative ions can improve the cabin air quality, in the cabin full of negative ions can make the animal comfortable and quiet, negative ions dust removal efficiency can be as high as 99%, can eliminate airborne bacteria and viruses negative ions can eliminate harmful gases in the treatment cabin, including odor and odor

(2) Animal medical effects

According to the latest findings of scientists, negative ions have antioxidant,anti-aging effect of negative ions can significantly improve the body’s immune function, enhance the body’s ability to resist disease, is an important part of the animal self-healing power

(3) high concentration, chemical, therapeutic double suitable

in the negative ion injection mouth 30-90CM, the concentration can reach 3.6million / cm; can be effective indoor air; at 10CM, the concentration can reach11 million /m% for the sterile area can accelerate the wound treatment addiction, pain relief.



High-efficiency sterilization system

Efficient 254nm ultraviolet quartz coating sterilization system, efficient sterilization and disinfection of viruses have nowhere to hide, reduce cross-infection of sick animals.



Original three-effect unity treatment lighting system, all-round observation and treatment of sick animals

(1) warm light system

Simulation of different medical environments for sick pets, stabilize animal emotions and create the best treatment environment.

(2) bright light system

Can effectively observe the animal tongue, oral cavity and other vital signs.

(3) Light therapy

The blue light medical technology with a wavelength of 425~475nm can increase the protein (1GF-11) that allows cell proliferation and neurological activation by bathing in the blue light. Therefore, it is very helpful for old dogs and cats with brain degeneration or brain spine damage. It is also proven that blue light medical treatment also has the effect of rapid inhibition of inflammation.



Thoughtful design full graphic user interface

8.4-inch multi-touch color screen full microcomputer operating system, to achieve complex settings, simple operation.

(1) instant access to historical data analysis reports, accurate correction of operating conditions.

(2) Automatic fault location, image navigation processing, and intuitive explanation of maintenance methods.

(3) Photo and image guidance for novice users, so that even first-time users can operate.



Manufacturing process standard builder

Chamber cavity without seams structure, dirt from the accumulation of all stainless steel non-reflective material, special glass door, CU

high-performance guarantee unique door-in-door structure, with air holes in the small door, aerobic anaerobic monitoring chamber use both.



Specifications

Product Name	Aerobic animal medical monitoring cabin
Display	8.4 type W171XH128mm
Model	CFV-ICU01
Touch Screen	Pointer membrane resistance type
Dimension (LxWxH)	1160mmX650mmX1670mm
Maximum power consumption	1.6ku
Weight	Approx. 236KG
Average power consumption	0.8KW
Power supply	AC100V/220V 50/60HZ(with grounding)
Power failure guarantee	Emergency ventilation hatch with program control
Air conditioning mode	Independent type split cooling / PTC heating
Negative ion medical purification function	(7.2X10PCS/cm3X4) high concentration of negative ions
Green air function	UV germicidal lamp; high concentration of negative ion air purification
Standard accessories	Infusion rack
Conditions of use	-10~40℃ environment (indoor)
Micro printer	Intelligent automatic timing printing system
Set temperature	15~38°C temperature control precision earth 0.5C
Ultraviolet sterilization	UVC band 253nm efficient ultraviolet sterilization system
Set oxygen concentration	21~60%, control accuracy of 1%
Blue light medical system	Blue light 415nm LED
Carbon Dioxide Concentration	300-5000PPM, error 10PPM Built-in medical CO2 efficient purifier and automatic CO2 removal device
Medical Nebulizer	Maximum atomization rate = 0.2ml/min, fog particles (0_5-2um) noise ≤ 40dB(A)
Alarms-Warning	O2 concentration abnormal, temperature coat length, sensor coat length, CO2 concentration coat length, emergency hatch switch abnormal, etc.
LED lighting panel	Two-way light control: warm light Ten levels of adjustable control, special cold light for medical examination
Dehumidification index	Automatic dehumidification system, the standard humidity control at 40%, the actual humidity control in <50% Divided into High/Middle/Low three levels of adjustment High:45%~50% Middle:40%-44% Low:30%~39%
Fan control (air exchange volume adjustment)	LOW/MIDDLE/HIGH Three-step input speed adjustment Oxygen input adjustment – LOW Temperature adjustment – high gear Emergency ventilation start – high gear UV sterilization – mid-range CO2 concentration is too high – high gear
