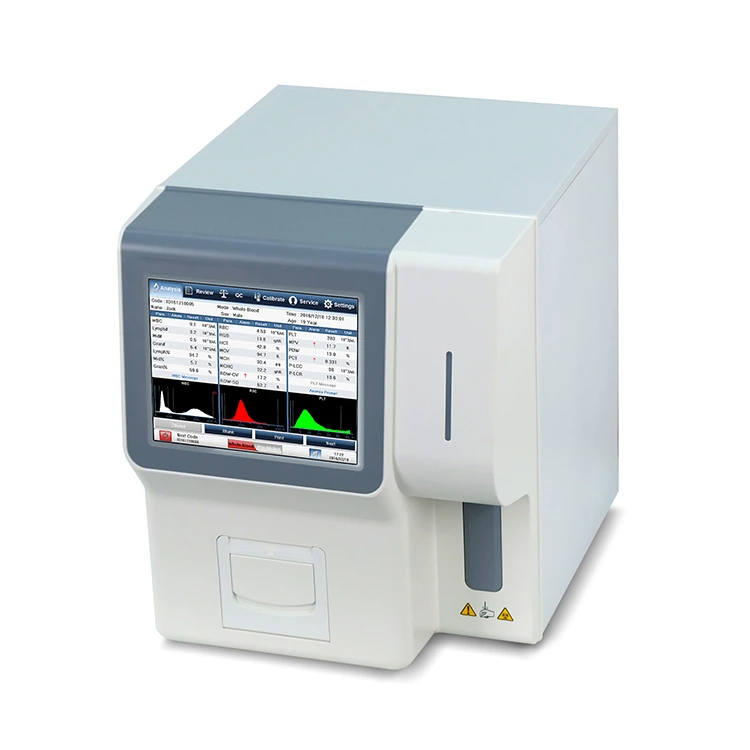

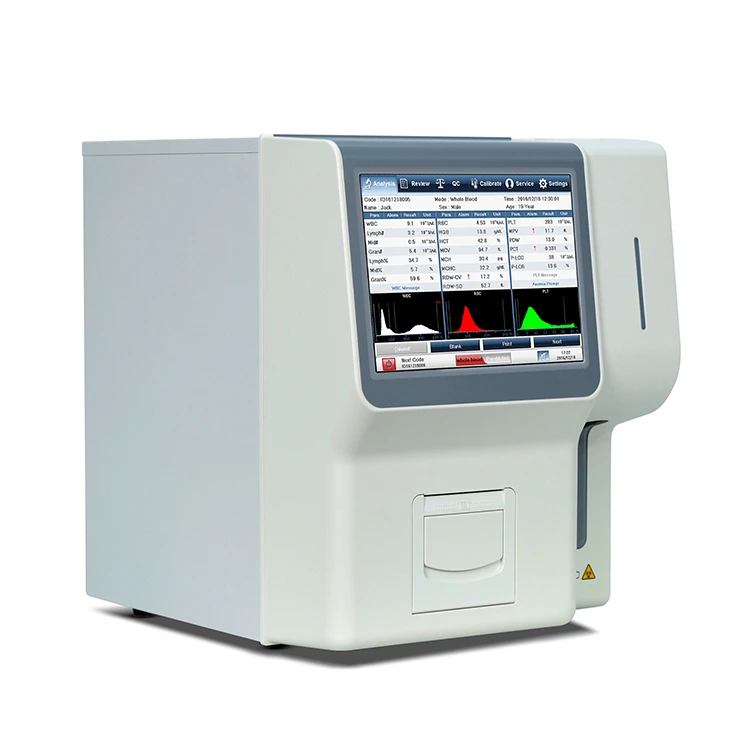

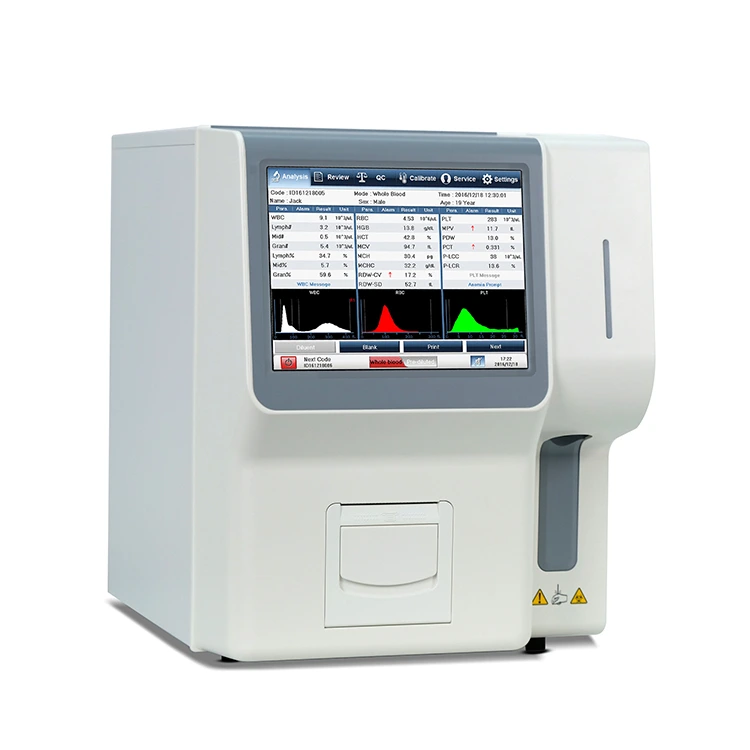

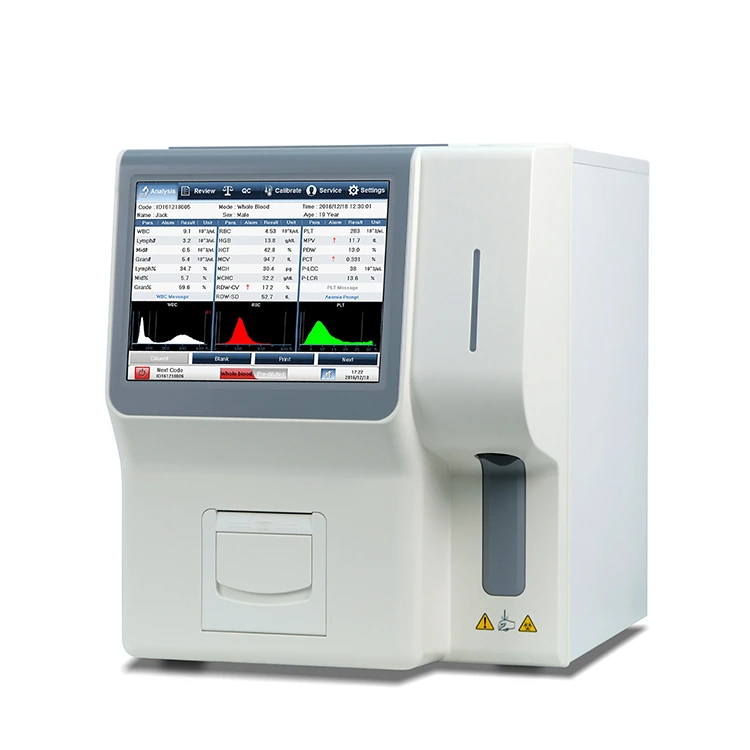

CFV-HA32B Veterinary Hematology Analyzer

• Parameters & Histograms

21 parameters and 3 histograms:

WBC, Lymph#, Mid#, Gran#, Lymph%, Mid%, Gran%, RBC, HGB, MCV, MCH, MCHC, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR, P-LCC, WBC Histogram, RBC Histogram, PLT Histogram

• Reference Value Settings

Preset five sets of reference values: Man, Woman, Child, Baby and General

• Alarm System

Multiple alarms of running status including blank counting abnormal, reagents empty, waste full, counting hole clogged, counting area leak or bubble, recorder abnormal, external printer abnormal and circuit abnormal, etc

• Measures of Unclogging Treatment

Back flushing, soaking and burning. Automatic unclogging treatment before and after the sample analysis

• Printout

English print report, optional report formats

• Storage

Can store more than 10,000 sample results, including parameters, histograms and patient information. Support multiple conditions combination query

• Communication

Open communication protocol. Support connection to LIS

• Data Import & Export

Import or export data via USB port

• Quality Control System

Include 9 QC files, automatically draw quality control chart, provide the average, SD, CV

• Calibration System

Support manual and automatic calibration

• Software Upgrading

Upgrading software via USB port

• Display & Touch Screen

10.4 inch true color TFT LCD and touch screen

• Printer

Built-in patented structure thermal printer, paper 80mm wide, easy to load paper. Report printing takes only 5 seconds

• Data Ports

One network port, one RS-232 port, four USB ports

• Optional External Devices with USB Port

Standard 101 keyboard, mouse, barcode scanner and multiple printers

• Power

220V, 50Hz  Input power: ≤150VA

• Operating Environment
• Environment Temperature: 10 ℃～30℃
• Relative Humidity: ≤70%
• Atmospheric Pressure: 70.0kPa ～0kPa
• Dimensions

368mm x 448mm x 475mm

• Weight

≤23Kg
